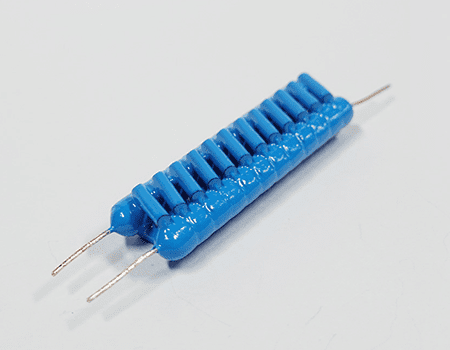

Ceramic capacitor stacks doubling rectifier assembly 20KV 250PF
Capacitor Parameters: 20kV 250pF
Capacity Accuracy: (K) ±10%
Operating Temperature: -25 to +85°C
Ceramic Dielectric: Y5T
Unit price: please contact us
*Common 12x voltage
*High Voltage Cascade for use on powder coating guns are available directly, see here >>
Product Function
Voltage Multiplier & capacitor stacks are mainly used in electrostatic generators, electrostatic powder guns, voltage multiplier circuit modules, high voltage negative ion generators etc.
Application areas
*High voltage electrostatic generators
*Hand-held powder coating guns
*Voltage doubling circuits
*Electrostatic standing machines for meltblown fabrics
Datesheet
| Datesheet_20KV250PF | |||||
| Product Name | Voltage Multiplier | Specification | 20KV/250PF+T75A | ||

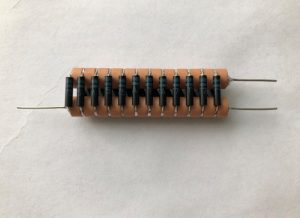

| Real Picture | |||||
 |
|||||

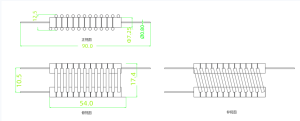

| Outline drawings and dimensions | |||||
 |
|||||
| Electrical performance data | |||||
| Capacity | Allowable capacity deviation | Rated Voltage | Testing voltage | Dielectric loss | Insulation Resistance |
| 250pf | ±10% | DC20KV | DC30KV | ＜0.5% | ＞10∧5MΩ |
| HV diodes | 2CL75A | ||||
| Packing Method | Inner packing: film bag/small carton; Outer Packing: carton | ||||
| Storage Method | Temperature: 0~40 ° C Humidity: <80%RH | ||||
| Remark | |||||
